CUSTOM ITEM: Polymer Tubing Drill. 1.0mm Polymeric Pin, Accessory for Flanging Tool. ARE-Applied Research brand. Bulk Price.
Additional Info:

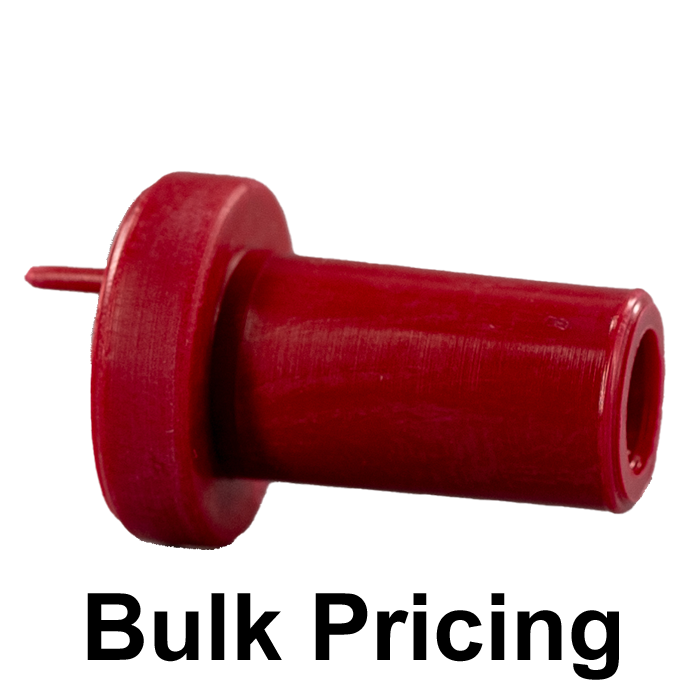

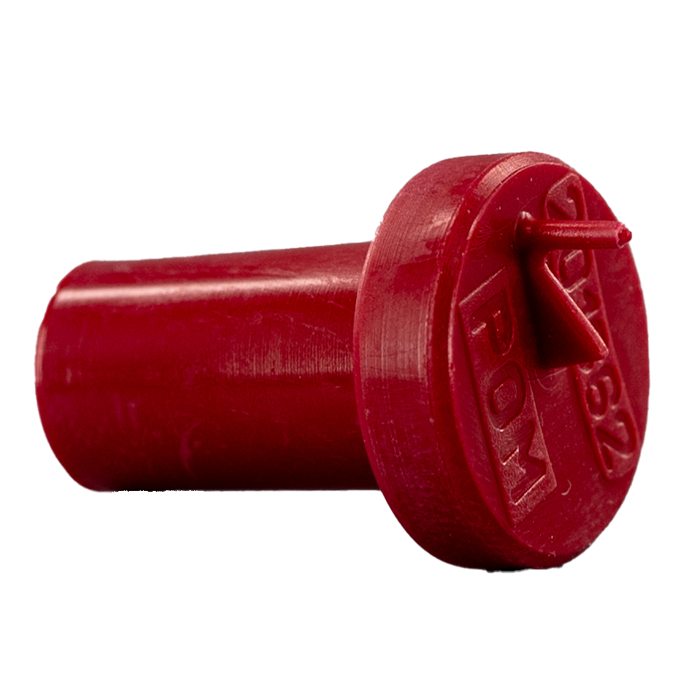

The 45099‑110 Polymer Tubing Flanging Drill is a precision accessory component designed for use with the MICROSOLV Flanging Tool, enabling accurate and repeatable cold flanging of polymer tubing tips.
This drill features a 1.0 mm polymeric pin, which provides controlled internal support during the flaring process, allowing the tubing to form a uniform, stable flange. The polymer pin is particularly beneficial for soft or flexible tubing materials, as it reduces mechanical stress while maintaining proper flare geometry.
Unlike standard kit components, this drill is supplied as an optional accessory and is not included in standard flanging tool kits, providing expanded capability for users working with larger internal diameter polymer tubing.
When used correctly, this tool enables mechanically formed (cold‑formed) flares, offering advantages over heat‑based methods, including:
Improved dimensional stability
Reduced tubing deformation
Consistent sealing surfaces for reliable connections
Why Choose the 1.0 mm Flanging Drill
This drill is typically selected when:
Working with larger ID polymer tubing
Additional internal support beyond 0.8 mm is required
Maintaining uniform flare geometry across tubing sizes
Expanding capability beyond standard kit inclusions
The 1.0 mm polymeric pin provides enhanced support for larger tubing bores, ensuring consistent and repeatable flaring results.
Key Features
Designed for Polymer Tubing
Compatible with PTFE, FEP, PFA, ETFE, and similar materials
Suitable for larger ID tubing applications
Ensures consistent flaring performance
Polymeric Pin Construction
1.0 mm polymeric pin
Provides internal support without damaging tubing
Reduces deformation risk during flaring
Accessory for Flanging Systems
Designed for MICROSOLV flanging tools
Expands tool capability beyond standard kit components
Supports broader tubing size range
Cold‑Forming Flange Technology
Mechanical flaring without heat
Produces durable, stable tubing flares
Improves reliability and repeatability
Typical Applications
Flanging larger diameter polymer tubing
Expanding flanging tool capability
Replacement or addition to flanging tool systems
Low‑pressure chromatography and fluidic systems
Laboratory tubing preparation workflows
Made‑to‑Order & Bulk Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
